Производитель: Mellanox
Код производителя: MMA1B00-C100D
Стандарт: QSFP28
Скорость передачи данных: 100 Гбит/с
Среда передачи: многомодовое волокно
Разъём: MTP/MPO
Длина волны: 850 нм
Максимальное расстояние: 100 м
Поддержка DDM: да
Вес: 0.05 кг
Гарантия: 12 мес.
Сайт производителя: www.mellanox.com
\u003cb\u003eMedia \u0026 Performance\u003c/b\u003e\r
\r
Media Type Supported: Optical Fiber\r
Fiber Mode Supported: Multi-mode\r
Ethernet Technology: 100 Gigabit Ethernet\r
Network Technology: 100GBase-SR4\r
\r

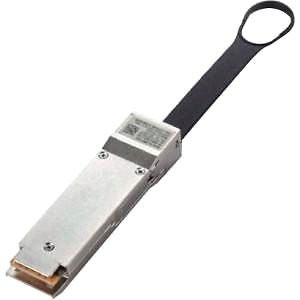

Mellanox® MMA1B00-C100 is a 4-channel, pluggable, QSFP28 optical transceiver, designed for use in 100Gb/s Ethernet. This module incorporates Mellanox integrated circuit technology, in order to provide high performance at low power. The transceiver operates over parallel multi-mode (MMF) ribbon fiber, using a nominal wavelength of 850nm, and is SFF-8665 compliant.\r
\r
The MMA1B00-C100 has a standard QSFP28 connector on the electrical side towards the host system supporting CAUI-4. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel multi-mode optical cable via a standard MPO connector. Each channel/fiber operates at signaling rates up to 25.78125 GBd.\r
\r
The MMA1B00-C100D transceiver has DDM functions implemented for reading the following key parameters with associated warning and alarm thresholds:\r
\r
-Temperature with warning/alarm\r
\r
-Supply voltage with warning/alarm\r
\r
-Laser bias current\r
\r
-Transmitted optical power with warning/alarm\r
\r
-Received optical power with warning/alarm\r
\r
Rigorous production testing ensures the best out-of-the-box installation experience, performance, and durability.
